KYNAR HEAT SHRINKABLE TUBE

  • KYNAR HEAT SHRINKABLE TUBE
  • KYNAR HEAT SHRINKABLE TUBE
  • KYNAR HEAT SHRINKABLE TUBE
  • KYNAR HEAT SHRINKABLE TUBE

KYNAR HEAT SHRINKABLE TUBE

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1000 Meter
    Delivery Time: 18 Days
    Packaging: Standard&according to customer's required
    Productivity: 1000000
    Brand: KEYUACE
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 100000
    Certificate: SGS
    Port: YanTian,Shenzhen

Basic Info

Model No.: KY-175

Product Description

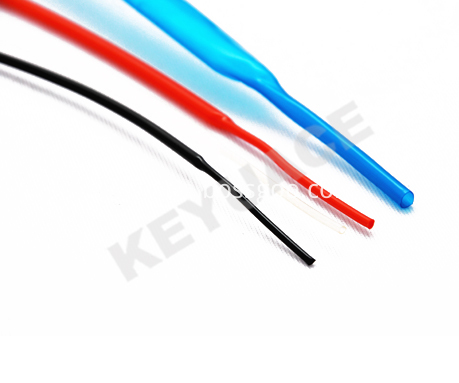

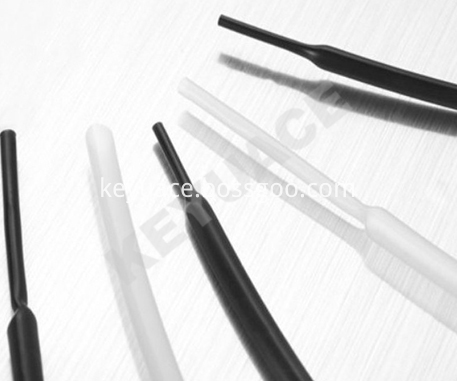

Kynar PVDF Heat Shrink Tubing

Product Description

KYNAR Heat Shrink Tubing, Scalpel protects Heat shrinkable tube is made of irradiation cross-linked special fluorine polymer PVDF ( polyvinylidene fluoride ). Handle of electric coagulation knife Heat shrinkable Sleeving,

PVDF Heat Shrink Tube with the specialty of superior chemical and physical properties, high temperature resistance, high flame resistance, chemical solvent resistance, rub resistance, and so on. High Temperature Heat Shrinkable Tube, Friction resistant heat-shrinkable tube it`s used in automobile, electronics, military, medical equipment and other fields and allies to industries: automobile, motorcycle cables,bicycle brake cables for insulation protection. Scalpel,coagulator knife, electric coagulation knife and other metal medical equipment for insulation protection.

Features & Benefits:
1, Semi-hard materials, thin wall design
2, Resistant to 175 degrees C
3, Shrink ratio: 2:1, 3:1
4, High flame resistance VW-1
5, Transparent design, inner player is visual when operating

Operating indexes:
Min. Shrink temp.: 155 degrees C
Recovered Shrink temp.: 175 degrees C
Working temperature: -55~175 degrees C


Product Description

2 12



Product Property

Performance requirements

Test method

Test Date

Tensile strength

34.5Mpa min

ASTM D 2671

≥35MPa

Elongation

200% min

ASTM D 638

≥200%

Heat shock 275℃,4hrs

No cracking,
dripping or flowing

ASTM D 2671

Pass

Low temperature flexibility -55℃, 4hrs

No cracking

ASTM D 2671

Pass

Elongation after aging

100%

ASTM D 638

≥100%

Dielectric voltage
withstand

2500V.,60sec,no breakdown

ASTM D 2671

Pass

Volume resistivity

1014Ω.cm min

ASTMD876

≥1014Ω.cm

Corrosion

No corrosion

ASTM D 2671

Pass

Flammability

VW-1

≥UL 224

Pass

Product Dimensions

Part Number

Nominal Size

As supplied (mm)

After recovered (mm)

Standard Packing
(M/Roll)

mm)

inch)

D(min)
Inside diameter

d (max)
Inside diameter

t. Wall thickness

KY175-012

1.2

3/64

1.2

0.6

0.25±0.05

1.2 / 100

KY175-016

1.6

1/16

1.6

0.8

0.25±0.05

1.2 / 100

KY175-024

2.4

3/32

2.4

1.2

0.25±0.05

1.2 / 100

KY175-032

3.2

1/8

3.2

1.6

0.25±0.05

1.2 / 100

KY175-048

4.8

3/16

4.8

2.4

0.25±0.05

1.2 / 100

KY175-064

6.4

1/4

6.4

3.2

0.30±0.08

1.2 / 100

KY175-095

9.5

3/8

9.5

4.8

0.30±0.08

1.2 / 100

KY175-127

12.7

1/2

12.7

6.4

0.30±0.08

1.2 / 100

KY175-191

19.1

3/4

19.1

9.5

0.43±0.08

1.2 / 100

KY175-254

25.4

1

25.4

12.7

0.48±0.08

1.2 / 100

KY175-381

38.1

11/2

38.1

19

0.51±0.08

1.2

KY175-508

50.8

2

50.8

25.4

0.58±0.08

1.2



Colors: Black, transparent, red and blue
Pointed is availabe according to customers' requests.
